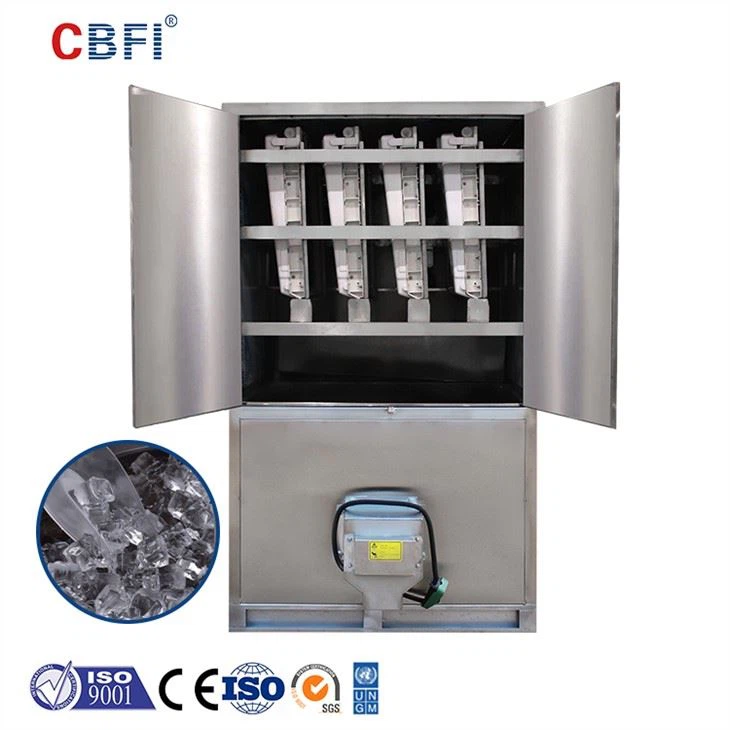

1 Tons Industrial Automatic Edible Large Ice Cube Maker with CE Certificate

1 ton large ice cube maker can produce 1 ton cube ice in 24 hours. power consumtion is 80kw.h for each tons cube ice, it means only need 3.33 kw.h per hour. 1 ton cube ice can produce 200 bags of 5 kg cube ice in 24 hours. the ice bin can storage ice for 2 hours. it means you can pack ice in each 2 hours for 17 bags. foot switch of cbfi large ice cube maker can control ice come out from ice outlet, which is free for your hands to pack ice.

Send Inquiry
Product Details

1 Ton Commercial Automatic Edible Large Ice Cube Maker With CE Certificate

1 ton large ice cube maker can produce 1 ton cube ice in 24 hours. power consumtion is 80kw.h for each tons cube ice, it means only need 3.33 kw.h per hour. 1 ton cube ice can produce 200 bags of 5 kg cube ice in 24 hours. the ice bin can storage ice for 2 hours. it means you can pack ice in each 2 hours for 17 bags. foot switch of cbfi large ice cube maker can control ice come out from ice outlet, which is free for your hands to pack ice.


Automatic large ice cube maker Features

Long service life .firstly, 60% Concentrated nitric acid can be defense because our cube ice machine will use the Copper nickel plating evaporator . secondly, all the frameworks of the cube ice machine are made of the 304 stainless steel that will make the machine use a long time.


large ice cube maker


Commercial edible cube ice produce by large ice cube maker

ice cube maker with CE certificate

                                Beautiful cube ice which the large ice cube maker makes.

industrial ice cube maker


Tidy cube ice produces, our automatic large ice cube maker can make the ice  be of a size. It looks prefect.



1 ton per day large ice cube maker

edible ice cube maker

Integrated large ice cube maker, it will help you saving more places so that you will better to rational distribution other machines or cargoes.


1 ton per day large ice cube maker Parameters


Working Conditions

Refrigerant

R22/ R404a

Cooling way

Water cooling / Air cooling

Power supply

380v/50Hz/3phase , 380v/60Hz/3phase ,
220v/50Hz/3phase, 220v/60Hz/3phase

Ambient temp.

+32 ℃

Supply water temp

+20 ℃

Evaporating temp.

-12 ℃

Condenser temp.

+40 ℃

Relative humidity

85 %

Noise

55dB



Compressor

Brand Name

Bitzer(Germany)

Product Model

4EES-4

Power

4.3 kw

Refrigerating Capacity

9.4 kw



Cooling Tower
 (Water cooling)

Brand Name

CBFI

Size

930*1460 mm

Power

0.18 kw

Flow

6.23m³/h

Heat exchange

36kw

Ice making water Circulating pump

Brand Name

Nanfang

Power

0.37 kw



Ice Outlet Motor

Brand Name

Nord

Power

0.75kw

Delivery time

30 days after the receipt of deposit


Main components brand of 1 ton per day large ice cube maker


Item No.

Name of Components

Brand Name

1

Compressor

Germany BITZER

2

PLC

Germany SIMENS

3

Expansion valve

Denmark DANFOSS

4

Solenoid valve of Water supply

Denmark DANFOSS

5

Oil filter

America Emerson

6

High and low pressure meter

Switzerland REFCO

7

Circulating water pump

China NanFang

8

Touch Screen

China MCGS



Industrial large ice cube maker produce

automatic ice cube maker

Nice edible ice, can be used in different places. For example fast food restaurant, hotel, bar, vegetable market and ect.

Making cooling drinks, adding into wine and keep food fresh and so on.
