30 Tons Flake Ice Maker Machine with Automatic Ice Packing System for Concrete Plant

1. Ice bin for small capacity to store flake ice. 2. Cold room for storing ice and keep the ice in high quality. 3. Ice delivery system like rake system, screw transmission, etc. usually used in big capacity flake ice machine .

Send InquiryChat Now
Product Details

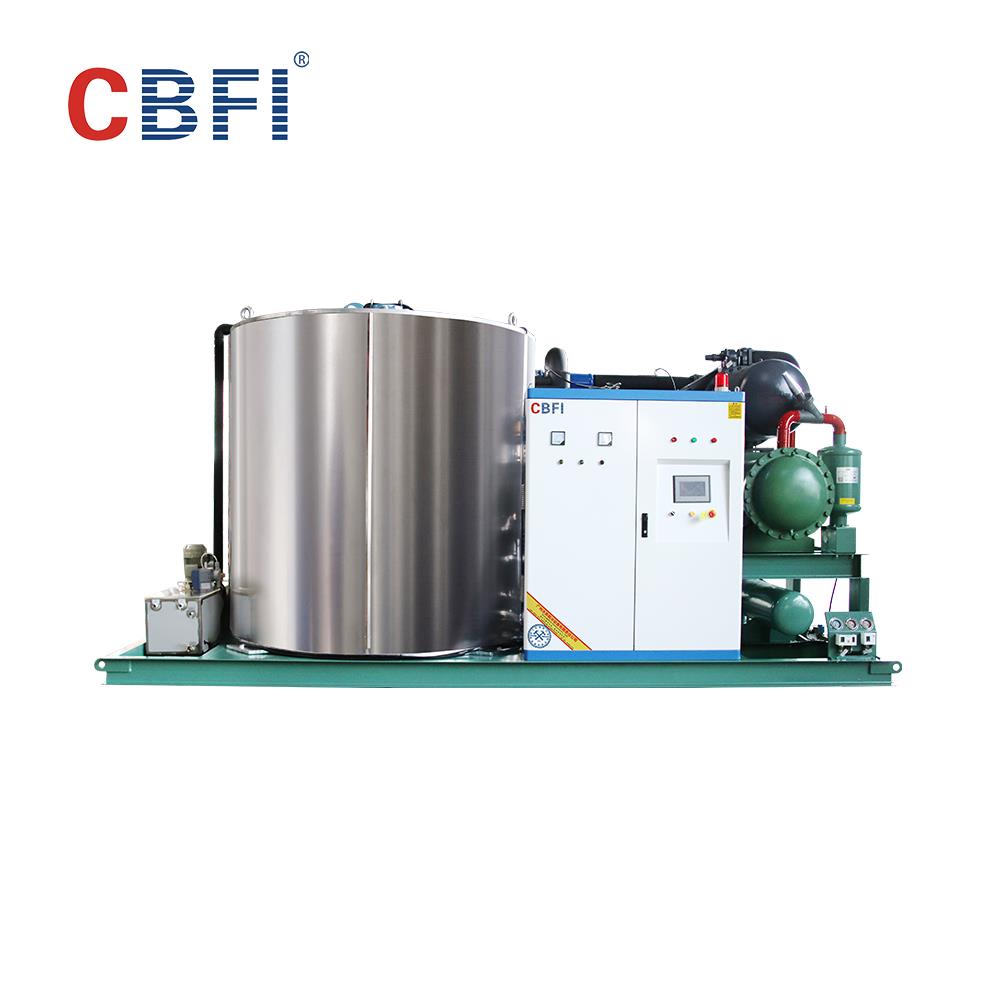

30 tons /24 hours flake ice maker machine


Flake ice widely used in: Supermarket, food processing enterprises, chain catering, concrete mixing plant, chemical plant.

Flake ice and flake ice machine features:

1. Ice thickness: 1.mm to 2.2mm

2. Daily capacity: 1 tons,2 tons,3 tons,5 tons …60 tons.

3. Flake ice machine type: use fresh water or sea water , use on land or on vessel.

4. Power saving: only consume 80 KW.H to produce 1 ton ice.

5. Ice making and harvest automatically, no need human taking good care of it.


Different capacity tables of flake ice maker with automatic packing

Model

Ice making capacity

Capacity of refrigeration

Machine dimension

Weight of machine

No.

Ton/24h

kw

W*H*L(mm)

KG

BF500

0.5

3.75

1220*900*1000

160

BF1000

1

8.85

1300*960*1200

210

BF2000

2

17.84

1500*1200*1350

360

BF3000

3

24.15

1800*1250*1400

1000

BF5000

5

35.1

2100*1250*1500

1100

BF6000

6

45.85

2500*2040*2200

1100

BF8000

8

52.7

2100*1250*1500

1300

BF10000

10

76.1

2300*1750*1740

1500

BF15000

15

110.9

3200*2100*2000

3200

BF20000

20

151

3400*2200*2560

4200

BF30000

25

180

3800*2300*2560

5000

BF35000

30

214.2

4500*2300*2800

6000

BF40000

40

226.1

7800*2100*2480

7500

BF50000

50

268.1

5000*2300*3000

10000

BF60000

60

278.4

5500*2300*3200

12000



flake ice maker machine

flake ice for concrete plant



Flake ice maker with automatic packing features

















Working Conditions

Refrigerant

R22/ R404a/R507

Cooling way

Water cooling/Evaporative cooling

Machine size

3300*2100*2200mm

Ambient temp.

+50 ℃

Supply water temp

20 ℃

Evaporating temp.

-20 ℃

Condenser temp.

+40 ℃

Relative humidity

85 %

Noise

55dB





Compressor

Brand Name

Taiwan Hanbell

Product Model

RC2-300B-Z

Power

55.9 KW

Refrigerating Capacity

130.5 KW













Other electric components

Brand Name

CBFI

Power of Cooling Water Pump

0.75 KW

Power of Reducer

0.75 KW

Cooling Water Consumption

0.05 m3/h

Power of Condensing water pump

5.5 KW

Power of condensing air cooling fan

1.5 KW


flake ice maker with automatic packing


flake ice machines on board

automatic pack system flake ice machine

Flake ice machine prodution at our factory. 30 tons flake ice maker machine

 For more details of the flake ice machine, pls click here to check.
