In the precision coordinate system of the modern food industry, temperature control is not just a production parameter; it is the red line for quality and safety. As the summer production peak approaches, how can you ensure that every link from raw material processing to terminal distribution stays within the "Golden Temperature Zone"?

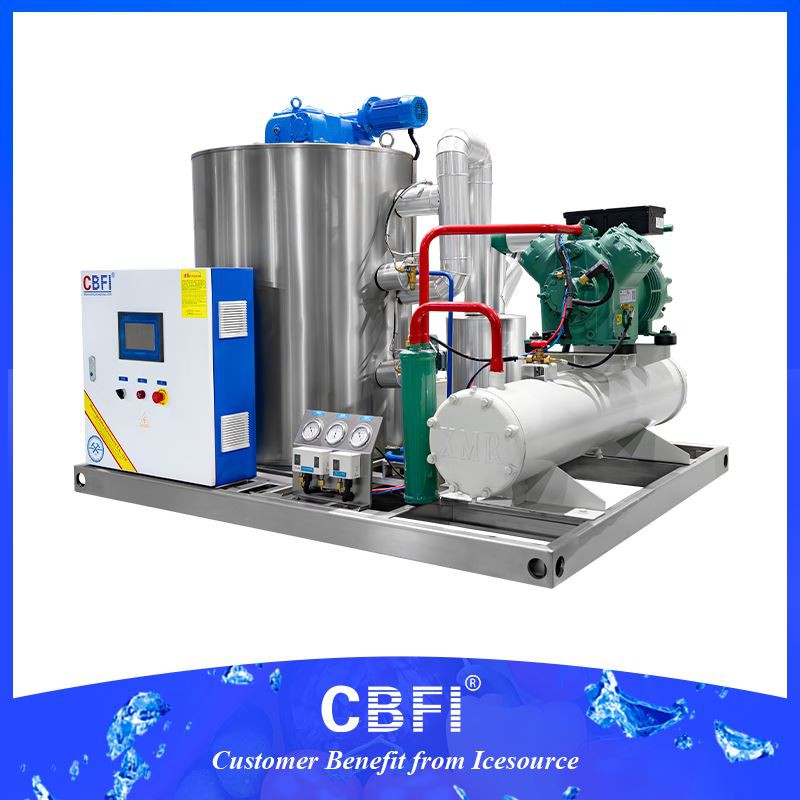

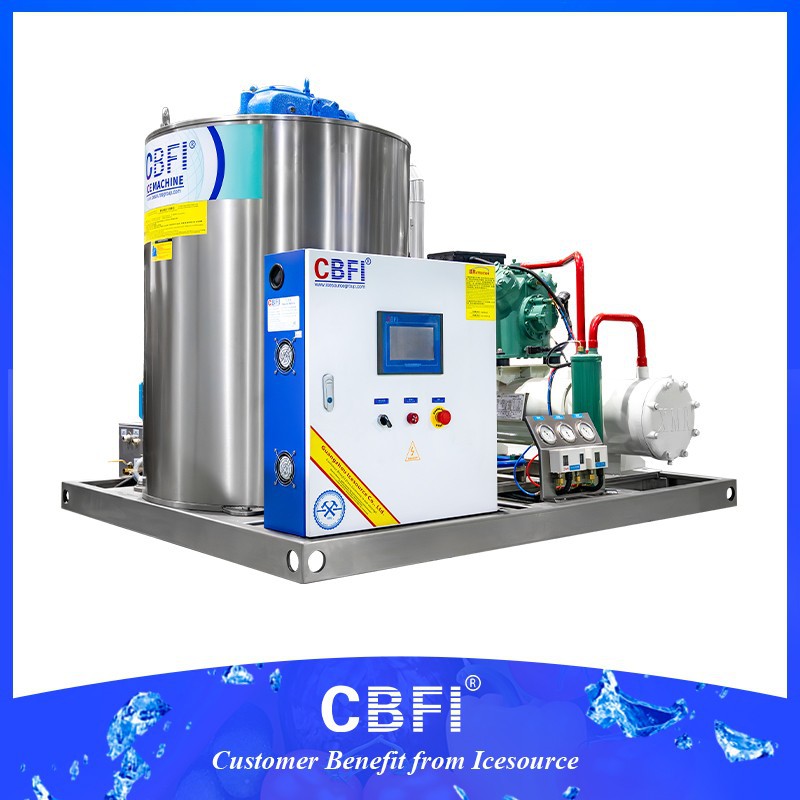

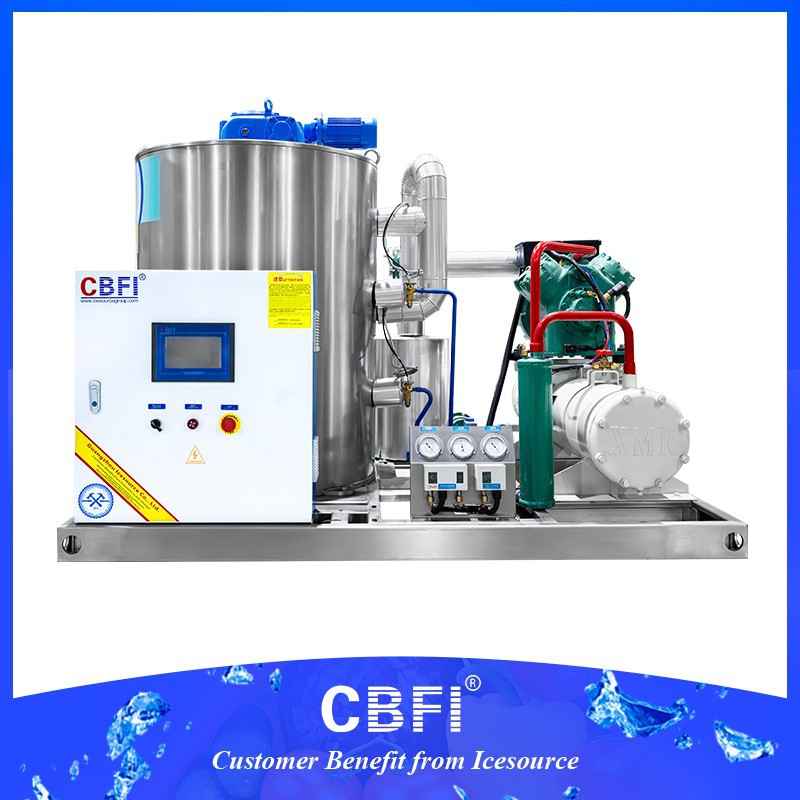

The Food-Grade Industrial Flake Ice System launched by CBFI (Guangzhou Icesource Refrigeration Equipment Co., Ltd.) transcends the scope of traditional ice-making equipment.This is not just an ice machine; it is the core physical barrier in your Food Safety Management System (FSMS).
Sub-cooled Ice: Not Just Cooling, but a Guardian of Texture
Unlike ordinary crushed ice, the flake ice produced by CBFI is in a sub-cooled state (with temperatures as low as -5°C to -8°C). This extremely low initial energy state holds irreplaceable scientific value in food processing:
•Thermodynamic Balance in Meat Emulsification: During high-speed chopping of meats (such as sausages and meatballs), the instantaneous high temperature generated by mechanical friction can destroy the emulsification stability of proteins. With a massive specific surface area (exceeding 1,500 m²/ton), CBFI flake ice instantly absorbs frictional heat, ensuring that fats do not melt and meat texture remains firm, thereby locking in the product's elasticity and juiciness.
•Kinetic Control in Baking Processes: During dough mixing, flake ice precisely delays the premature fermentation of yeast and prevents the gluten network from breaking due to rapid temperature rise. This "slow-release cooling energy" characteristic is key to ensuring the consistency of the mouthfeel in baked products.
Hygienic Engineering Breakthroughs
In food processing, ice is regarded as an "invisible ingredient." If the ice-making system has hygienic dead ends, the ice itself will become a source of cross-contamination. CBFI has introduced HY-GEN level hygienic protection logic into its design:
1.Fully Automatic CIP (Clean-in-Place) System: Unlike equipment on the market that requires manual disassembly and washing, CBFI offers an optional integrated CIP system. Through preset programs, the equipment can automatically complete the disinfection and rinsing of the water circuit and evaporator surface, completely eliminating the formation of Biofilms.
2.Non-Mechanical Static Evaporation Technology: We utilize a vertical static evaporator where the evaporator itself does not rotate during the ice-making process. This design avoids the risk of contamination from metal shavings or lubricants caused by the wear of rotating seals, ensuring that every flake of ice produced meets the highest food hygiene standards.
3.Deep Application of Antimicrobial Materials: All parts in contact with water and ice are made of SUS316L sanitary-grade stainless steel and undergo electropolishing. The extremely low surface roughness makes it difficult for bacteria to adhere.
Multi-Dimensional Application Scenarios: From Fields to Cold Chain Terminals
The application boundaries of CBFI flake ice machines extend far beyond imagination, as we strive to solve preservation pain points across the entire industry chain:
| Application Field | Core Pain Point | CBFI Flake Ice Solution |
| Fruit & Vegetable Pre-cooling & Transport | Respiration leads to moisture loss and spoilage | Flake ice has a soft texture with no sharp edges; it won't damage the skin when covering produce while providing continuous moisture compensation. |
| Deep-Sea Fishing & Aquaculture | Slow cooling of the fish core temperature | Combined with "sub-cooled water" technology, flake ice rapidly envelops the fish body, achieving uniform cooling from skin to bone and inhibiting enzymatic reactions. |
| Fresh E-commerce Last-Mile Delivery | Temperature control failure in the final mile | The high packing density of flake ice gives it longer endurance in insulated boxes, making it an ideal refrigerant for fresh food delivery. |
Layout Early to Secure Certainty in Summer Capacity
Summer order surges are often accompanied by a gap in ice-making capacity. CBFI recommends that food processing enterprises plan their capacity layout in advance. Our equipment supports modular expansion and intelligent remote monitoring, providing stable, hygienic, and efficient cooling energy support whether in the high-temperature environment of Jakarta or the industrial parks of Surabaya.
