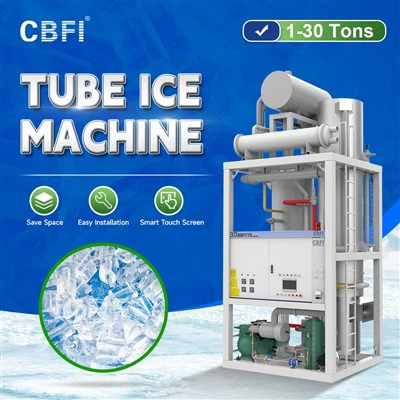

Tube Ice Machine

Features of tube ice

● Daily Production 1-100 ton

● PLC intelligent controlled, full automatic production, need no human operation

● Unique ice harvesting way to make the process quick and low shock, more efficient and safer

● Machine has passed CE certification

● Evaporator is made of stainless steel, and PU foam insulation is used for better efficiency

● Refrigerant cycling system is special designed to ensure the stable operation

● Automatic laser welding to make the welding work nice and no leak, ensured the low fault rate

● All equipments are made of 3D simulation assembly,compact structure which makes it humanized to operate and maintain

● Special alloyed machine combined with unique heat treatment process makes the evaporator has the best thermal performance



Tube ice application

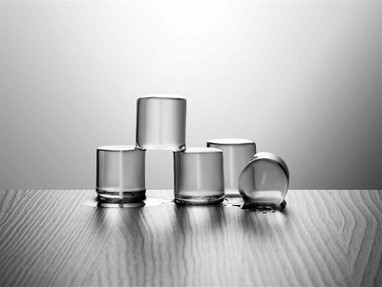

Tube ice The outer diameter of the ice tube is φ22mm, φ28mm, φ35mm, etc., and the length is between 25 and 45mm. The internal diameter can be adjusted during the ice making process, usually between φ5 and 10mm. Ice tubes are thicker, crystal clear, and take longer to melt or store. Good air permeability, widely used in daily food, fruit and vegetable preservation, aquatic product preservation, etc.









our cases



Europe



30T solid cut flat tube ice machine case

The market where solid tube ice is popular has high requirements for ice tubes. want to buy ammonia system 30 tons tube ice machine

China

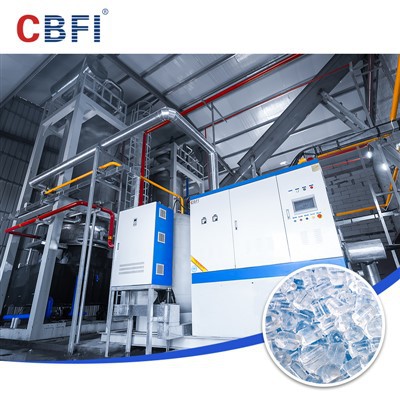

50 Tons 24 Hours Tube Ice Machine and Cube Ice Machine Full-Automatic Plant

The project is a fully automatic edible ice plant that uses a high-speed automatic packaging ice machine. All equipment includes 3 sets of tube ice machine, 1 set of cube ice machine, water filter, ice storage, ice screening device and automatic packing ice machine.

FAQ



01.What are the diameters of the tube ice machine? Are the prices the same?

We have 22mm, 28mm, 35mm pipe diameter to choose from, the price is the same.

02.What is the length of the tube ice machine? Can it be adjusted?

The standard length is 30-45 mm. It can be adjusted, but it needs to be informed before placing an order. After the machine is ready, it cannot be changed.

03.How big is the hole in the middle of the tube ice? Can it be done without holes?

6~8mm. There is no hole, it is solid ice, it can be made, but the unit of the machine will be much larger, so the price of the whole machine is much higher.

04.What is the tube ice temperature? What is the density?

The temperature is -3 degrees. Density is 550 kg/m3.

05.How often does the machine produce ice? How much ice is out at a time?

About once every 20 minutes, the ice making time is slightly different for different ice cube sizes. One time every 20 minutes, 72 times a day. A rough calculation of machine output/72 times of ice output at one time, for example, 10,000 kg/72 times of ice output at one time for a 10-ton machine = 139kg/time.

06.One of the compressors of the tube ice machine is broken, can I still make ice normally?

It can make ice, but when the compressor is broken, the expansion valve and the power of the exhaust end do not match the capacity of the evaporator, so it is not recommended to start it. It is recommended to find an engineer to overhaul the compressor in the shortest possible time and restore the normal operation of the machine as soon as possible.

CBFI R&D Freon System Tube Ice Machine(1-30tons daily capacity) and Ammonia System Tube Ice Machine(above 30tons, Even above 100tons daily capacity) .The tube ice machine is a mechanical device for producing tube ice. It has a hollow or solid cylinder that is widely used for beverage cooling in cafes, bars, restaurants and hotels. For more than a decade, we have been committed to the R&D and manufacturing of ice machines for many years, and we are fully confident to provide you with the best tube ice equipment solutions. The tube ice machine is an ice making machine. It is named for its ability to produce hollow ice of irregular length. The outer diameter of the ice tube is φ22mm, φ28mm, φ35mm, etc. and the length is between 25~45mm, and the inner diameter can be adjusted during the ice forming process usually between φ5~10mm. The ice tube is thick and crystal clear, and it takes a long time to melt or store. The gas permeability is good so it is widely used in daily food, fruit and vegetable preservation, aquatic products preservation, etc.

ICESOURCE is the most professional and largest tube ice machine manufacturer in China. All tube ice machine equipments offered in our factory come in high quality, high precision and good performance. Please be free to buy our quality products with competitive price and enjoy our good service.
