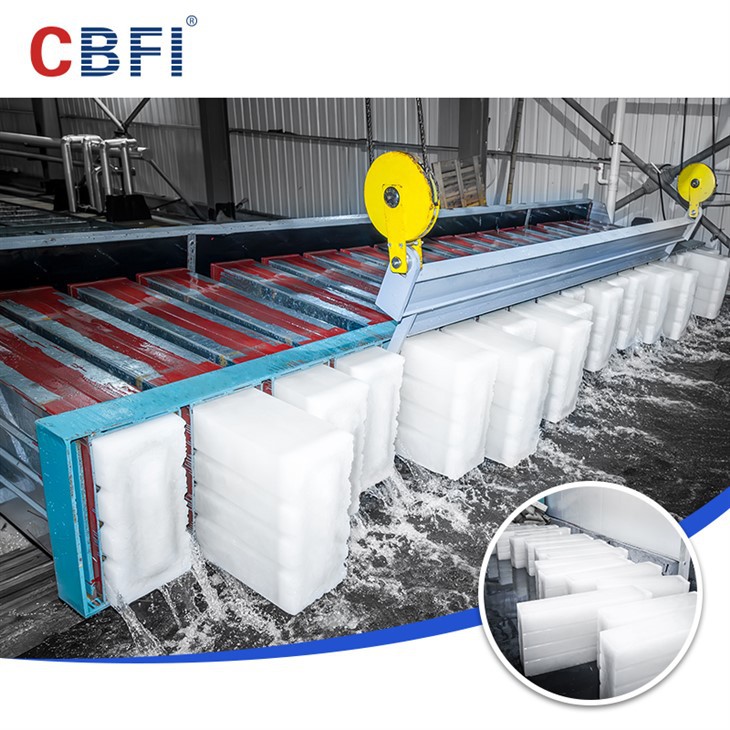

The industrial refrigeration landscape is undergoing a significant transformation, driven by the dual pressures of global food security and environmental sustainability. While Icesource (CBFI) remains a pivotal player in the 100-ton brine ice block machine market, a broader analysis of the global industry reveals a sophisticated ecosystem of technological competition and innovation.
Advanced Technical Innovations
1. Material Evolution: The Anti-Corrosion War
The greatest enemy of a brine system is corrosion. While standard machines use galvanized steel, high-end 100-ton systems now employ Titanium (Ti) Tube Evaporators. Titanium is virtually immune to the corrosive effects of Calcium Chloride ($CaCl_2$) brine, extending the equipment's lifespan from a standard 7 years to over 20 years.
2. Hydrodynamic Optimization of Brine Pools
In a 100-ton plant, the brine tank can exceed 20 meters in length. Achieving ice consistency requires sophisticated fluid dynamics. Modern systems utilize Dual-Propeller Flow Stabilizers instead of simple pumps. This ensures the temperature gradient across the entire tank remains within $\pm 0.5^\circ\text{C}$, preventing "soft centers" in ice blocks located far from the evaporator.
3. Sub-cooling and Flash Gas Removal
High-capacity systems now integrate Economizer Circuits. By sub-cooling the liquid refrigerant before it enters the evaporator, the cooling capacity per unit of electricity is increased by 10%~15%.
Intelligent Operation and Automation
The modern 100-ton plant is no longer labor-intensive; it is a data-driven environment.
Laser-Guided Harvesting Cranes: Automated overhead cranes use laser positioning to pick up ice cans, dip them into the thawing tank, and pour them onto the conveyor belt with millimeter precision.
Energy Reduction and Thermal Recovery
Further reducing the carbon footprint of 100-ton systems involves thermodynamic recycling.
Desuperheating for Hot Water: The high-temperature discharge gas from the compressor can be used to heat water for the thawing tank via a Plate Heat Exchanger. This eliminates the need for external heaters to release ice from the molds.
Variable Frequency Brine Agitation: Since the cooling load drops as the ice reaches the final stages of freezing, frequency drives (VFDs) reduce the speed of brine agitators, saving up to $30\%$ of auxiliary power consumption.
The development of the 100-ton brine ice block machine is moving away from "bigger" toward "smarter and greener."
