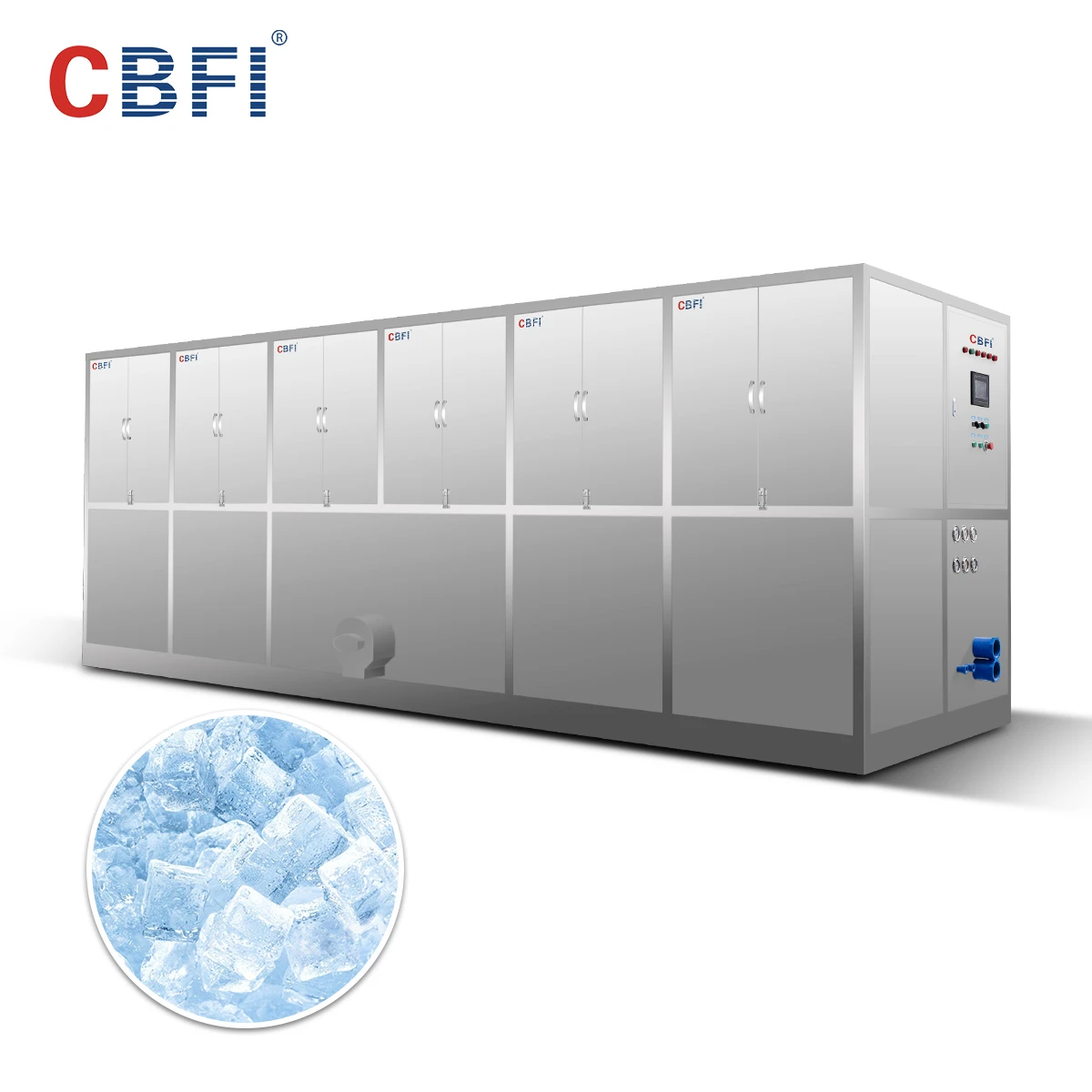

CBFI® CV1000 Commercial Cube Ice Machine (1 Ton/Day)
Product Overview
The CBFI® CV1000 is a premier commercial-grade industrial cube ice machine engineered specifically for startup edible ice plant investors, premium hotels, large beverage chains, and seafood logistics hubs. Delivering a guaranteed 1,000 kg (1 Ton) daily output per 24 hours, the CV1000 combines a compact footprint with top-tier industrial refrigeration technology.
Built entirely with food-grade SUS304 stainless steel and driven by patented energy-saving mechanisms, the CV1000 transforms standard water into premium, crystal-clear, slow-melting square ice cubes (22 × 22 × 22mm or 29 × 29 × 22 mm or 38 × 38 ×22mm).
Core Technical Features & Advantages
Crystal-Clear, High-Density Ice Production
Traditional commercial ice makers often produce cloudy ice due to trapped air and impurities. The CV1000 eliminates this issue using our advanced Multi-Nozzle Circulating Spray System. Water is continuously flushed across the freezing grids, allowing microscopic air bubbles and mineral sediments to wash away. The result is pure, rock-solid cube ice that looks premium and lasts longer in beverages.
Patented Flat-Wall Defrost Loop (30% Energy Savings)
Electricity is the single highest ongoing cost for ice production lines. The CV1000 integrates CBFI's Patented Flat-Wall Heat Exchange technology. During the harvest cycle, hot compressed gas is channeled directly behind the evaporator plates, detaching the entire ice sheet cleanly within 1 to 2 minutes. This drastically minimizes thermal energy loss and reduces electricity consumption per ton of ice compared to industry standards.
Strict Food-Grade SUS304 Construction
Uncompromising hygiene is mandatory for commercial edible ice factories. Every mechanical component in contact with water and ice-including the entire ice grid evaporator-is manufactured from premium SUS304 stainless steel treated with specialized electroplated nickel coating. It offers maximum resistance against corrosion, simplifies chemical cleaning, and ensures complete FDA and European CE safety compliance.
Siemens PLC Smart Control & Automation
Equipped with a high-performance Siemens PLC control system, the CV1000 runs fully unattended. It dynamically self-adjusts based on ambient variations and water levels. The touchscreen interface provides real-time system diagnostics, water shortage alerts, and automatic safety shut-offs for overpressure or motor failure.
Technical Specifications Table
| Feature / Parameter | Specifications & Details | Industrial Advantage |
| Model | CBFI CV1000 | Standard 1-Ton Industrial Model |
| Daily Capacity | 1,000 kg / 24 Hours (1 Ton/Day) | High-efficiency cycle for continuous supply |
| Ice Cube Options | $22 \times 22 \times 22 \text{ mm}$ or $29 \times 29 \times 22 \text{ mm}$ | Industry-standard sizes for retail and hospitality |
| Core Compressor | Bitzer / Copeland / Danfoss | Top-tier brands ensuring continuous 24/7 heavy loading |
| Refrigerant | R404A / R448A / Eco-friendly options | High volumetric cooling efficiency with zero ODP |
| Cooling Options | Efficient Air-Cooled or Heavy-Duty Water-Cooled | Adaptable to tropical climates and restricted spatial zones |
| Standard Voltage | 380V/3P/50Hz (Customizable Configuration) | Configurable to match global regional grid requirements |
| Machine Frame | High-Strength Structural Steel + Double Anti-Corrosion | Minimizes operational vibrations and prevents rust |
Primary Application Scenarios
The CV1000 is engineered to excel across a wide array of demanding commercial environments:
Edible Ice Factory Startups: The ideal entry-level profit center to package and distribute bagged ice to local vendors.
Premium Hospitality & Catering: Supplies large volumes of pristine ice for high-end hotel bars, banquet halls, and restaurants.
Commercial Beverage Chains: Keeps pace with high peak-hour demands for milk tea shops, cafes, and fast-food chains.
Supermarkets & Fresh Logistics: Provides dense, slow-melting ice beds for seafood presentation and perishable food transit.
Turnkey Plant Integration & Global Support
Guangzhou CBFI provides full end-to-end integration for your production facility. The CV1000 can be coupled with our RO Water Purification modules, automated screw delivery lines, insulated bulk storage bins, and semi-automatic weighing and bagging stations.
Every unit undergoes a rigorous 72-hour continuous load test at our 26,500m² factory before shipping. All international deliveries are wrapped in vacuum-sealed moisture-proof protective films and secured in export-approved heavy wooden crates, ensuring your equipment arrives ready for a seamless plug-and-play installation.
