Guangdong Puying Cold Chain Trading Center is located in Nanhai, Foshan, with a total investment of 650 million yuan and a construction area of approximately 110000 square meters
80000 ㎡ cold chain warehousing and logistics center cold storage group, civil construction multi-layer cold storage.

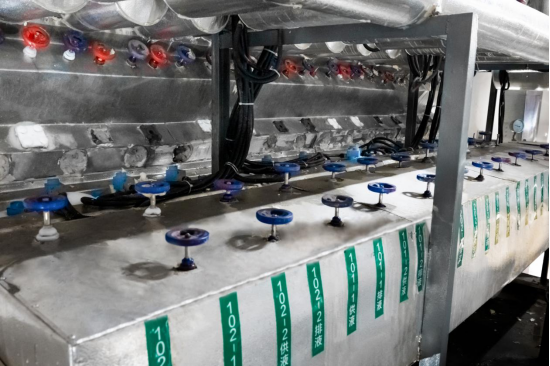

Adopting a centralized liquid supply system, consisting of four subsystems: ultra-low temperature zone, freezing zone, adjustable temperature zone, and enclosed platform air conditioning, it is energy-saving and environmentally friendly.
[Closed temperature control platform 8-15 ℃]
The first floor is a closed temperature controlled platform with an area of about 1200 square meters, a net height of about 6 meters, and a temperature range of 8-15 ℃.
[Ultra low temperature freezer -40 ℃~-35 ℃]
A supporting quick freezing warehouse with an area of approximately 500 square meters and a net height of 7.3 meters inside the warehouse.
Based on the storage of salmon, the nominal storage capacity is approximately 400 tons, with a daily purchase volume of 5%. The purchase temperature is not higher than -25 ° C, and the shipment temperature is -40 ° C. The cooling time is 24 hours.
[Low temperature refrigerated storage -25 ℃~-18 ℃]
There are a total of 12 rooms, each with an area of approximately 3000 square meters, and the net height inside the warehouse is 7.3 meters.
Based on the storage of frozen pork, each refrigerated warehouse has a storage capacity of approximately 6700 tons.
[Variable temperature cold storage -25 ℃~6 ℃]
The project is also equipped with two variable temperature warehouses, with temperatures ranging from -25 ℃ to 6 ℃. The area is 2500 square meters and 3000 square meters respectively, and the net height inside the warehouse is 7.3 meters, meeting the temperature requirements of different customers' products.
Based on the storage of frozen pork, the nominal storage capacity is about 8200 tons, with a daily purchase volume of 5%, which is 410 tons per day. The purchase temperature is not higher than -8 ℃, and the shipment temperature is -25 ℃
The cold storage is equipped with an IoT system, utilizing digital twin technology to create a smart big data center.

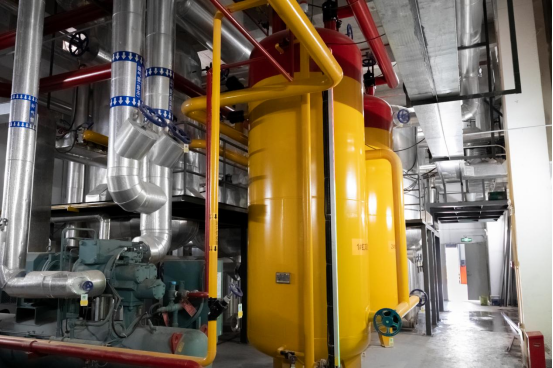

The project adopts a centralized cooling energy-saving industrial refrigeration system.
There are four subsystems under it: ultra-low temperature zone, temperature adjustable zone in the freezing zone, and closed platform air conditioning.
Equipped with efficient oil separation and adjustable volume ratio, the protection device is complete, safe and reliable.
CBFI has experience in designing, installing, upgrading, and renovating cold storage projects of over a hundred cubic tons.
The best choice for CBFI 10000 ton level cold storage!
